MULTI-POINT
COMPENSATING
DIE HOLDER
SINGLE POINT
COMPENSATING
DIE HOLDER
200 SERIES
STANDARD
DIE HOLDER

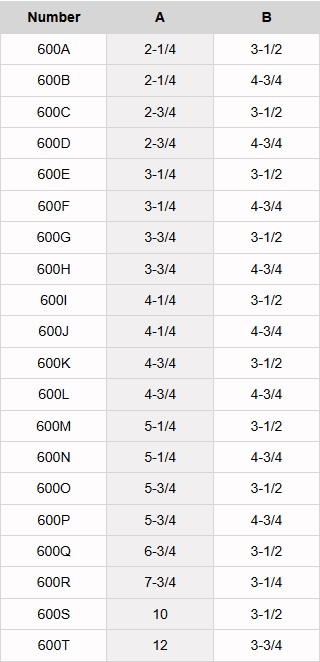

600 SERIES
COMBINATION
4-WAY HOLDER
RAM ADAPTERS/
EXTENSIONS
*BUILD YOUR OWN

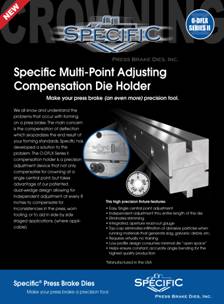

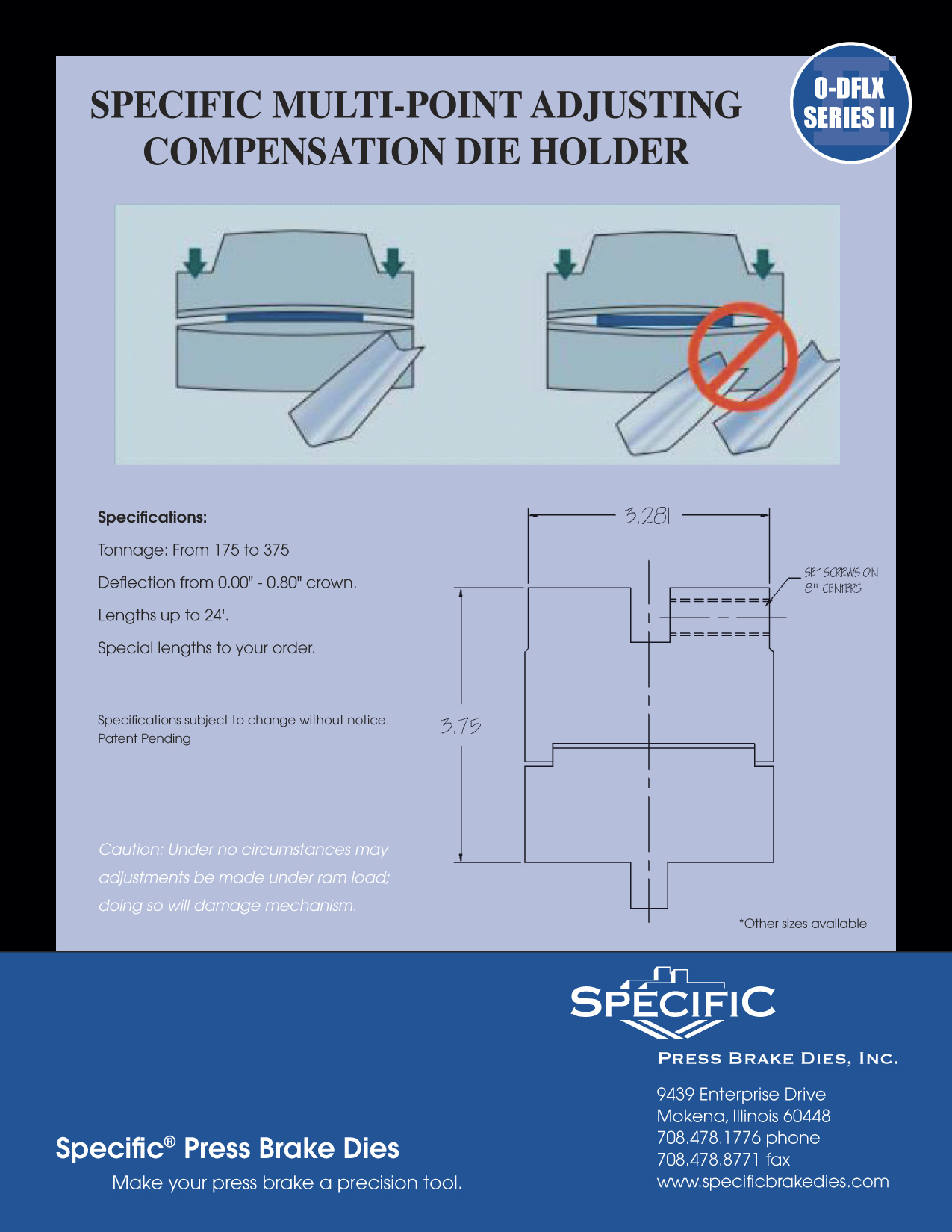

MULTI-POINT COMPENSATING
DIE HOLDER
- This high-precision fixture features:
- Easy, Single central point adjustment
- Independent adjustment thru entire length of the die
- Eliminates shimming
- Integrated, aperture read-out gauge
- Top-cap eliminates infiltration of abrasive particles
- Requires virtually no training
- Low-profile design consumes minimal die "open space”
- Helps ensure constant, accurate angle bending for the highest quality production
BACK TO TOP

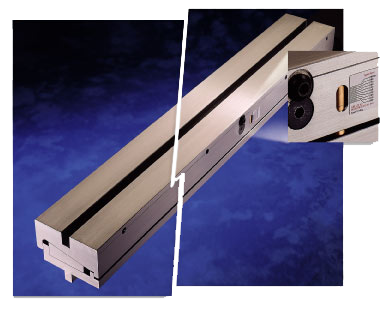

SINGLE POINT COMPENSATING
DIE HOLDER
- This high-precision fixture features:
- Eliminates shimming
- Easy, single central-point adjustment
- Integrated, aperture read-out gauge
- Reliable, single-wedge design
- Top-cap eliminates infiltration of abrasive particles
- Requires virtually no training
- Low-profile design consumes minimal die "open space”
- Helps ensure constant, accurate angle bending
BACK TO TOP

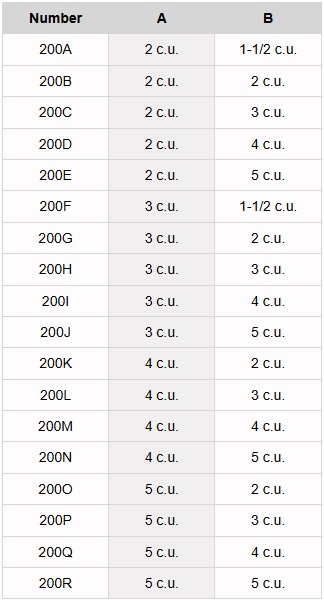

200 SERIES
DIE HOLDERS / ADAPTERS
600 SERIES COMBINATION
DIE HOLDERS / ADAPTERS

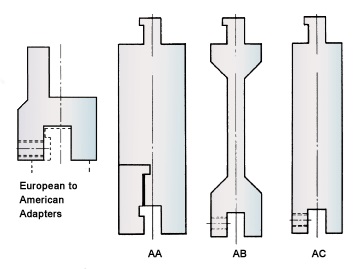

RAM ADAPTERS / EXTENSIONS
1

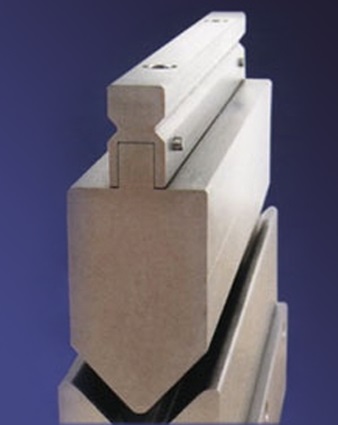

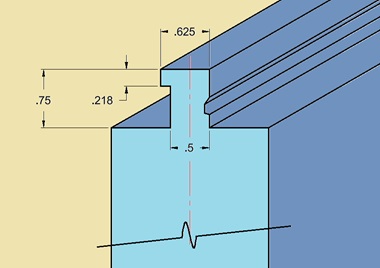

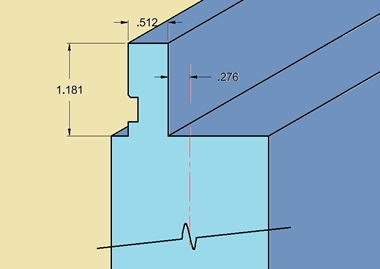

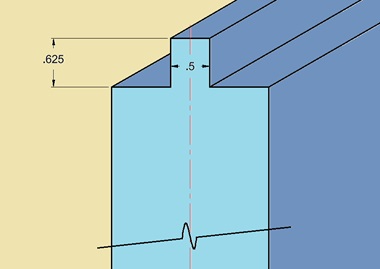

Upper tang

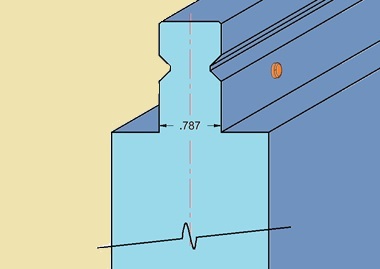

Wila NS

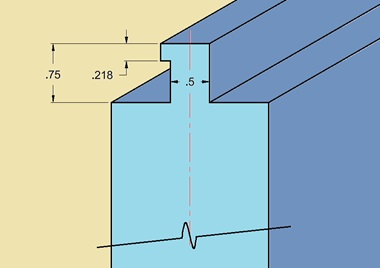

Use the upper arrows on the drawing to change styles.
2

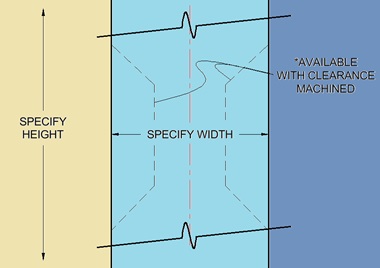

Adapter size
3
Lower receiver

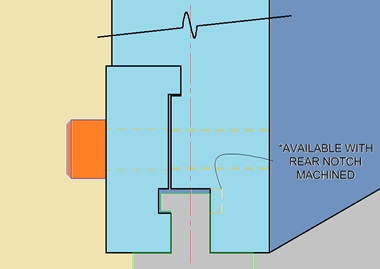

American with clamp bars

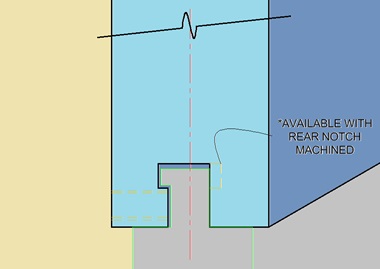

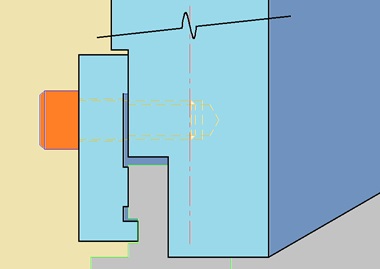

Use the lower arrows on the drawing to change styles.

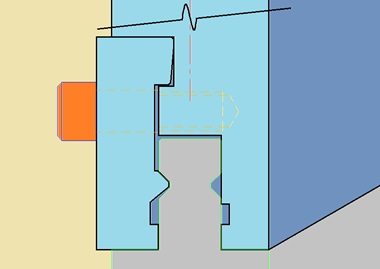

4Wila NS
2" W × 5" H
BAmerican clamp bars
